V1 series PLC
Product description:
V1 series PLC is a high-performance basic small PLC developed by Jarol shares. It supports 8K step user programs and 8K
word data components; high-speed input 2x60K+4x10K; high-speed output 3x100K; built-in RS485x1, RS422x1; built-in USB
interface, support download and debug, System upgrade; logic instruction 250ns, floating point operation: 8us.
Product advantages:
■ Program storage space up to 8K steps;
■ The user program and all power-down holding component values are permanently saved under power-down conditions, without battery support. The real-time clock should be kept for at least 15 days in case of power failure (the main module must be powered on for more than 5 minutes);
■ Provide multi-channel high-speed input and output ports, with rich motion and positioning
control functions;
■Integrating two independent communication ports, providing a wealth of communication protocols,
providing MODBUS instructions to facilitate system integration;
■ Provide user program encryption function to protect user intellectual property rights.
Product number
|
V1系列PLC产品型号
|
|
名称
|
规格型号（T晶体管，R继电器）
|
点数
|
外形尺寸
长*宽*高（mm)
|
|
V1
系
列
|
V1-0808MT
|
16
|
72.5x90x90
|
|
V1-0808MR
|
16
|
72.5x90x90
|
|

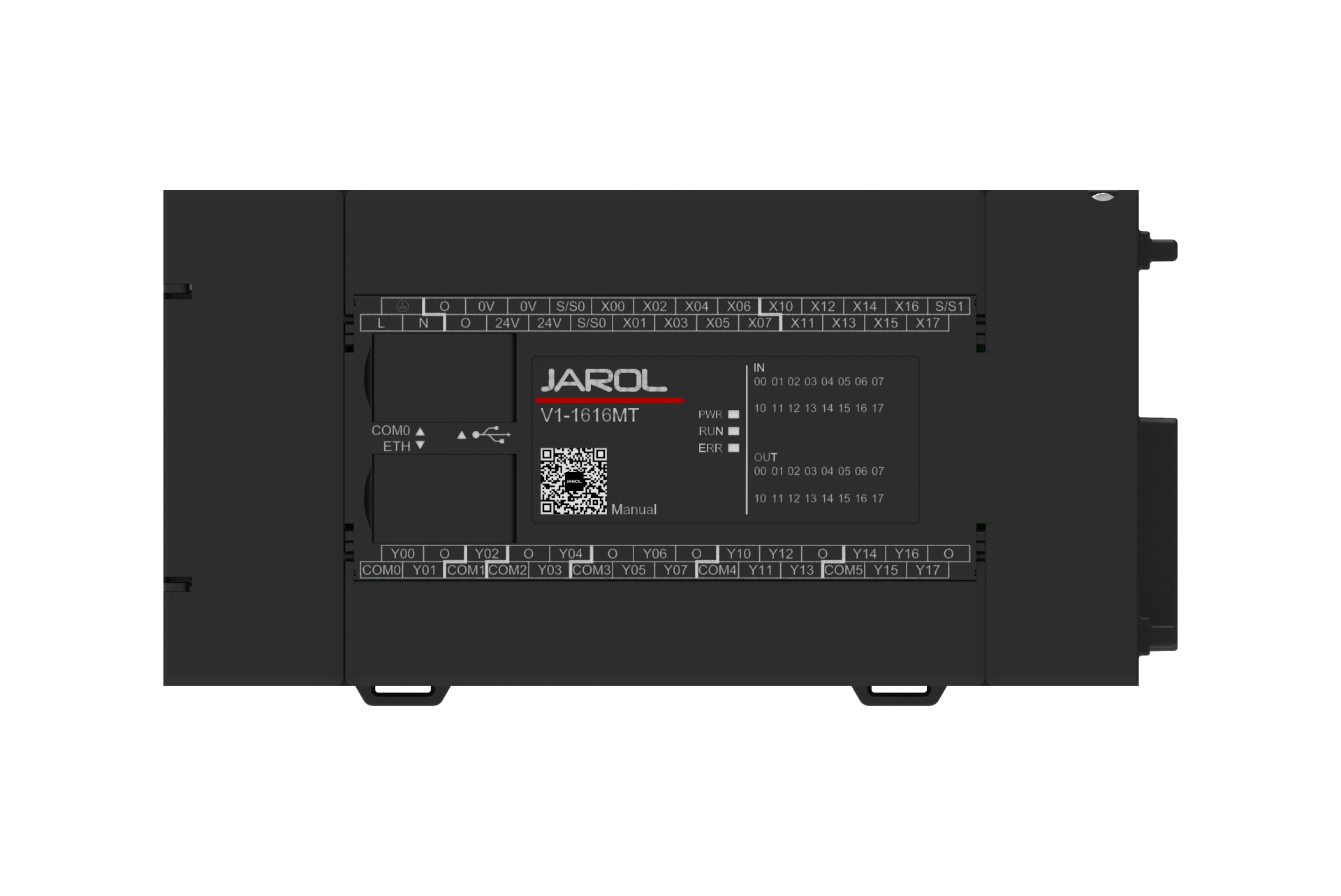

V1-1616MT
|
32
|
184x90x90
|
|
V1-1616MR
|
32
|
184x90x90
|
|
V1-3624MT
|
60
|
233x90x90
|
|
V1-3624MR
|
60
|
233x90x90
|
|
Note: Only hardware configuration is provided, and the programming software is compatible with others.
|
V3 Series PLC
Product description
V3 series PLC is a high-performance motion control PLC developed by Jarol shares, using MCU+FPGA architecture, high-speed
input frequency up to 8*200kHz; supports more and faster high-speed pulse output ports, high-speed output frequency up to
5*200kHz, Support S curve acceleration and deceleration, support multiple positioning methods, such as interrupt
positioning, multi-segment speed positioning, etc.; support USB communication, which can realize fast debugging; support
two-axis arc linear interpolation.
Product advantages:
■ High-speed input: dual CPU design, support 8 independent 200K inputs. Can provide more accurate frequency measurement
and pulse counting, thereby improving the accuracy of processing.
■ High-speed output: support five-axis high-speed pulse output, and support two-axis arc linear interpolation function,
more accurate trajectory control.
■S curve trapezoidal acceleration and deceleration: can shorten the positioning time, improve the processing efficiency,
and make it smoother during positioning.
■ Support multi-segment speed instruction: the instruction can specify the speed and length of 2-16 stages at a time.
Multi-segment positioning is done in one go to improve efficiency and reduce start-stop impact.
■ Support interruption positioning instruction: after the interruption is generated by the high-speed input, it runs
according to the specified length of the instruction, and can specify the running speed, and automatically supplement the acceleration and deceleration control.
■ Support circular arc linear interpolation instruction: use two axes Y0, Y1 for circular or linear interpolation.
Product number:
|
V3系列PLC产品型号
|
|
名称
|
规格型号（T晶体管）
|
点数
|
外形尺寸
长*宽*高（mm)
|
|
V3系列
|
V3-1616MT
|
32
|
184x90x90
|
|

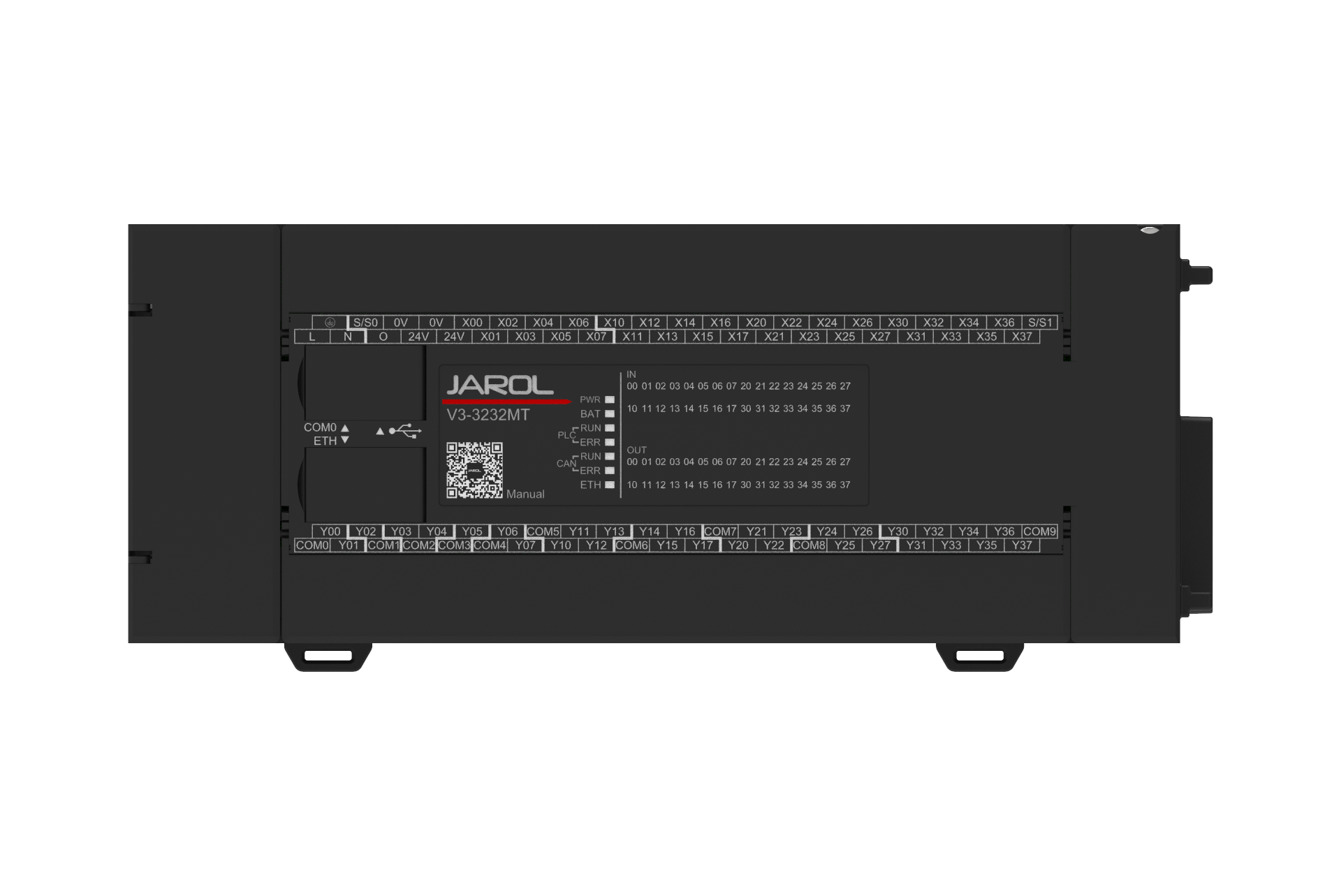

V3-3232MT
|
64
|
233x90x90
|
|
Note: Only hardware configuration is provided, and the programming software is compatible with others.
|
Industry application
Pipe cutting machine, discharge mechanism, longitudinal cutting knife mechanism, bearing pipe cutting, automatic dispenser,
3D printing, etc.
