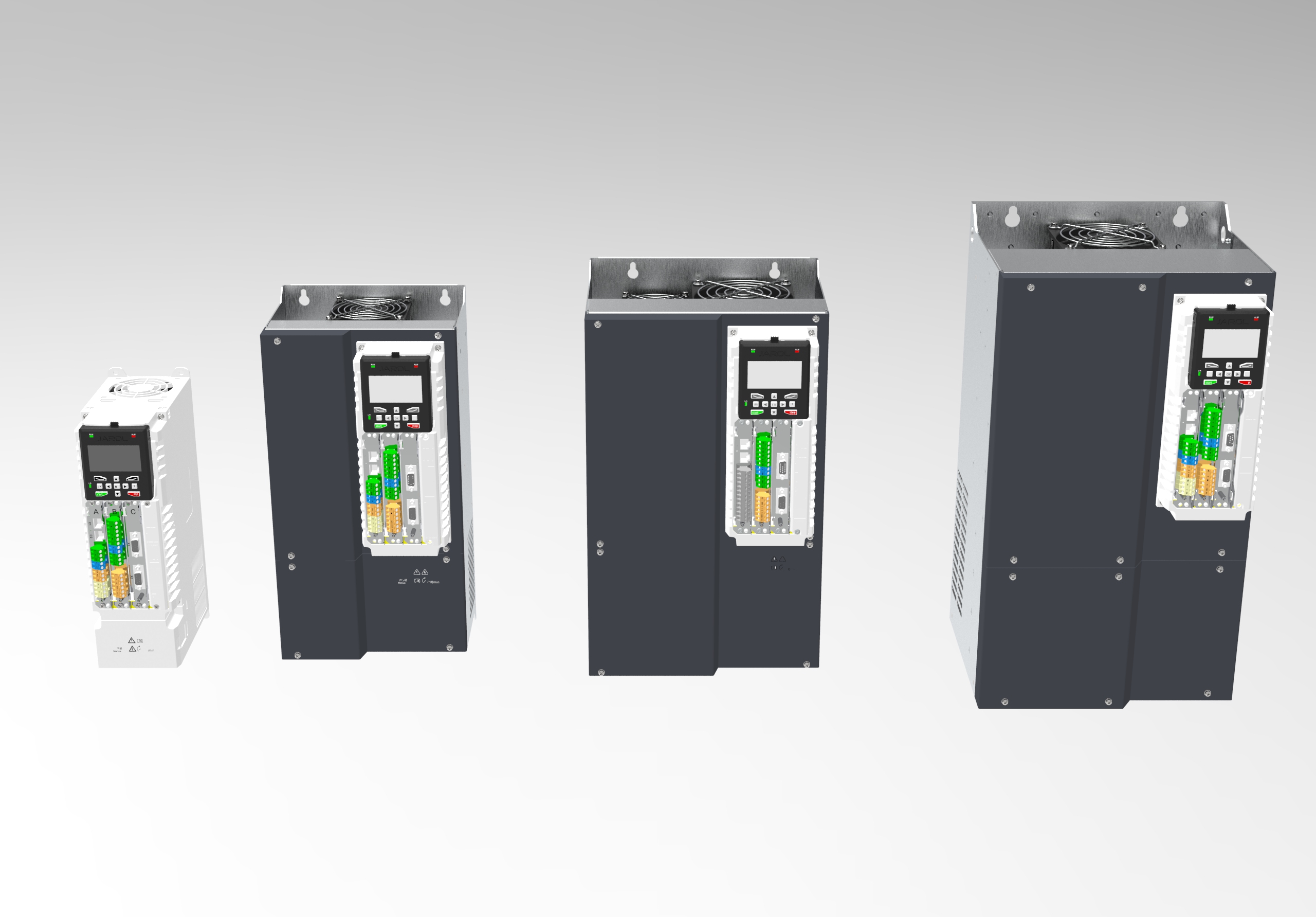

A new generation of JAC880 high-end series inverter
Listed!
▽▽▽
Multifunctional, high performance, small size, easy to use
01 Product Description
JAC880 series inverters adopt internationally leading direct torque control algorithm and vector control algorithm to achieve high-performance and high-precision motor drive
control, which further strengthens the reliability of the product and the adaptability of the environment, as well as customized and industrialized design. It can better meet
the needs of various transmission applications.
02 Technical Characteristics
① multi-function
Advanced high-performance motor control algorithm
Support multiple motor drives, synchronous, asynchronous, reluctance motor, etc.
Support multiple communication protocols
Support multiple encoders
② high performance
High speed and high precision control
Powerful motor torque, speed, and position control capabilities
Good voltage and current control
③ small size

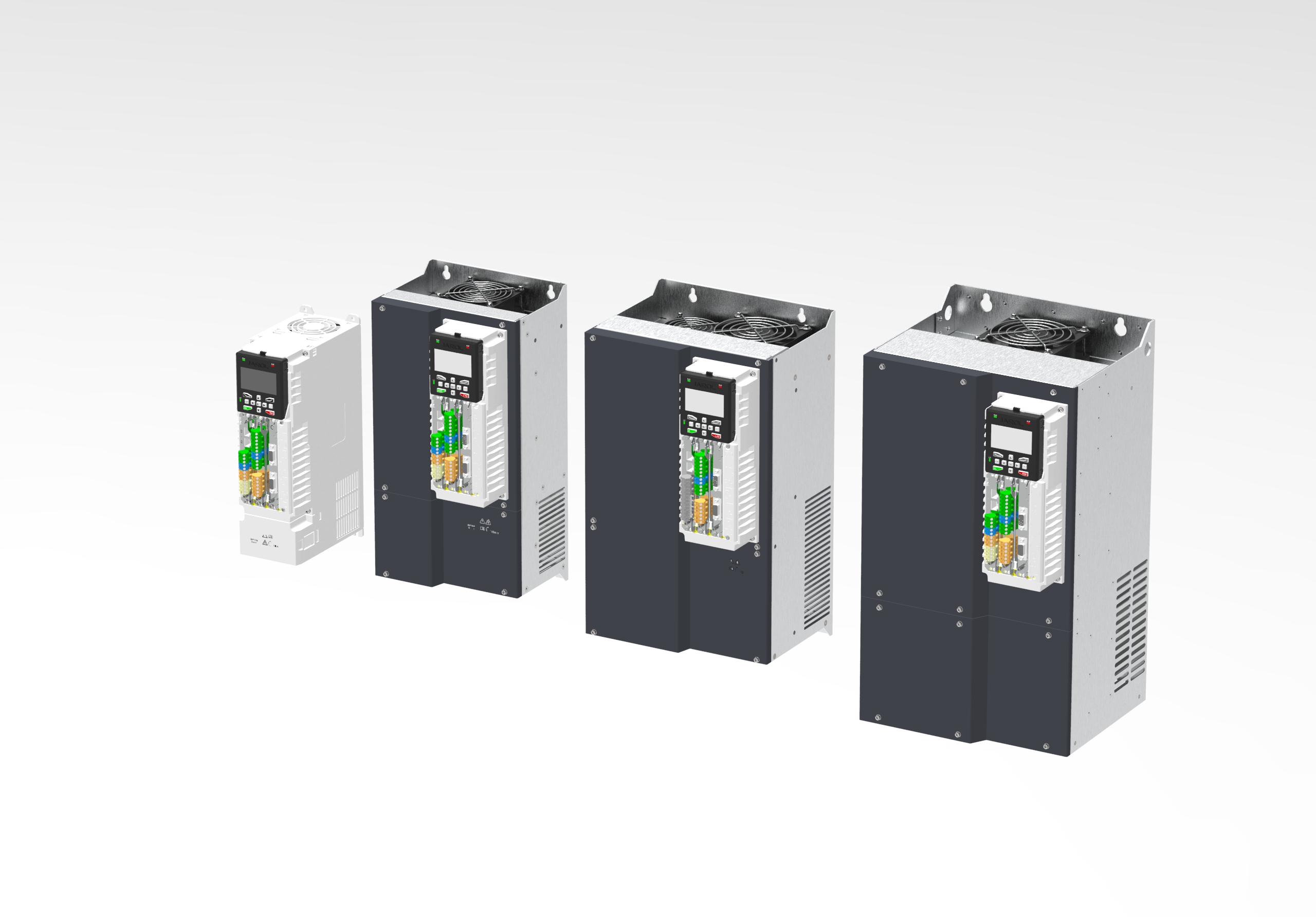

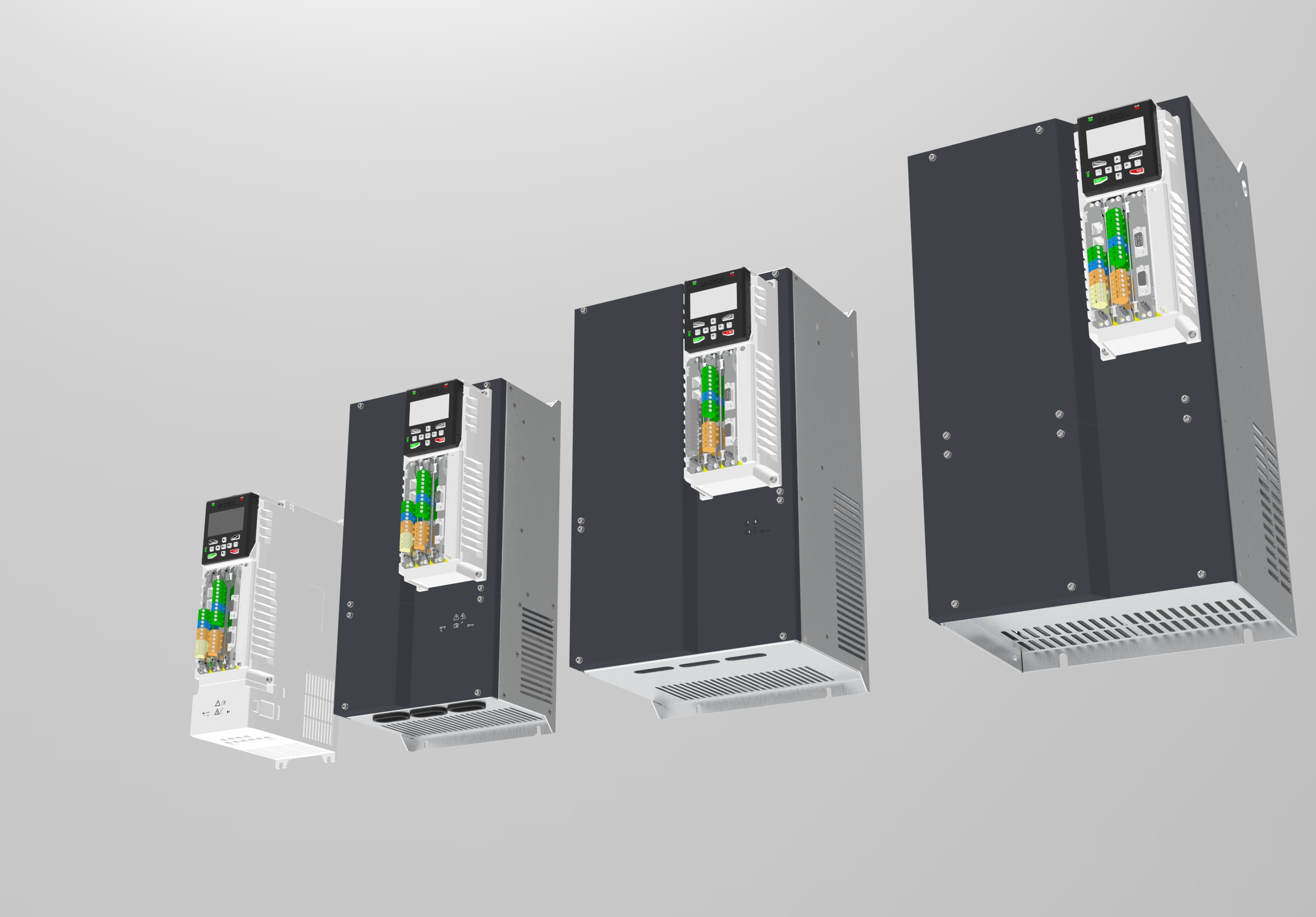

Book-style design saves installation space
④ easy to use
Support LCD

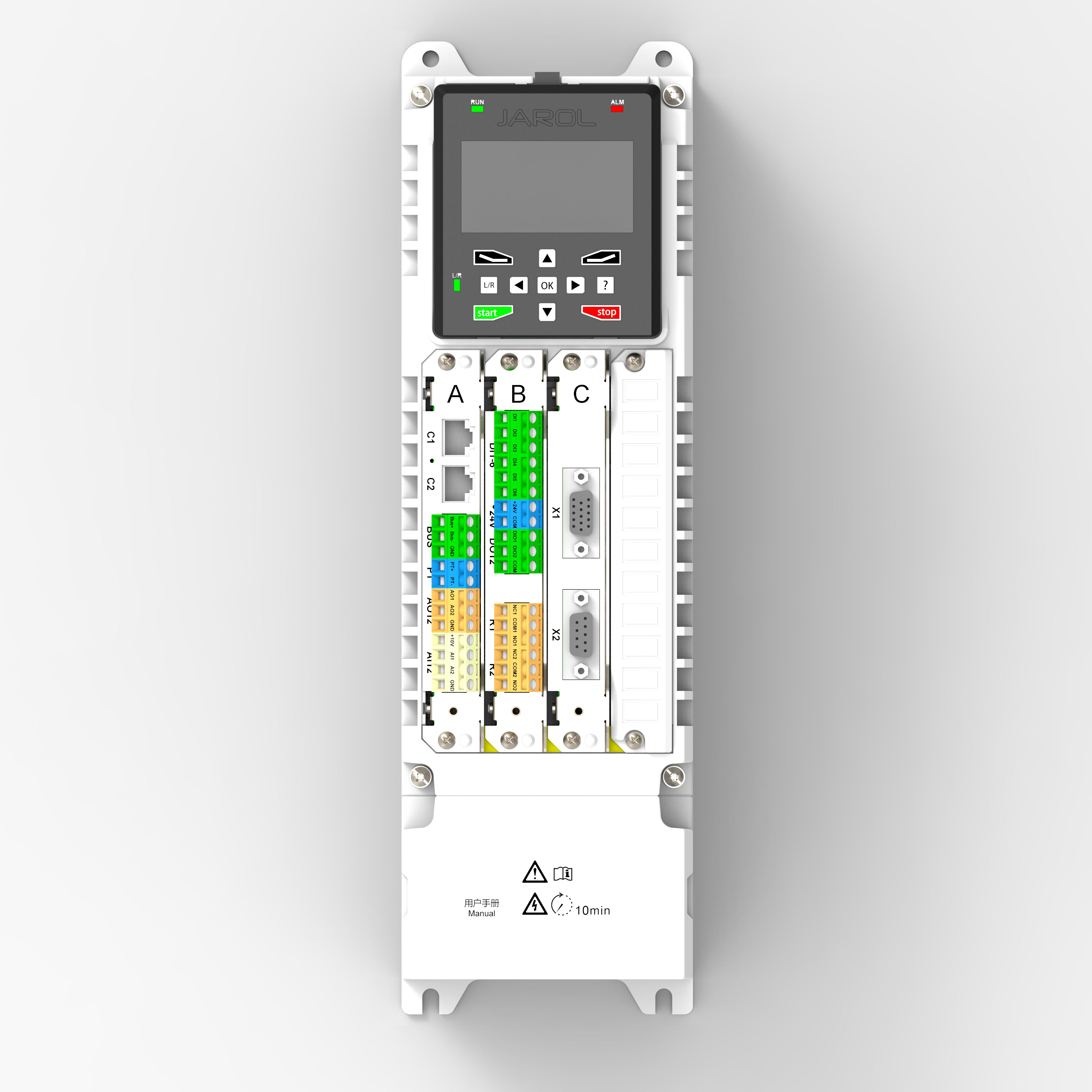

Modular plug-in design of expansion card
⑤ rich expansion function
I/O cards can be highly customized according to customer needs
Support plug-in, easy wiring and maintenance
Different functional I/O terminals are designed with different colors, greatly reducing the probability of user wiring errors, easy to use, beautiful and practical
⑥ built-in servo function
Built-in servo positioning mode, under the PG vector control mode, it can perform position control modes such as zero servo, spindle orientation (4 orientation positions), simple carry control (8 kinds of carry amount settings), pulse train position control;
Can replace most servo applications
03 Product number
|
Number
|
Power
kVA
|
Output current
A
|
Output current
A
|
Adapted motor
|
Heating power
kW
|
|
kW
|
HP
|
|
Three-phase power：380V，50/60Hz
|
|
JAC880-5R5GB-4-8020
|
8.9
|
14.6
|
13
|
5.5
|
7.5
|
0.195
|
|
JAC880-7R5GB-4-8020
|
11
|
20.5
|
17
|
7.5
|
10
|
0.262
|
|
JAC880-11GB-4-8020
|
17
|
26
|
25
|
11
|
15
|
0.445
|
|
JAC880-15GB-4-8030
|
21
|
35
|
32
|
15
|
20
|
0.553
|
|
JAC880-18GB-4-8030
|
24
|
38.5
|
37
|
18.5
|
25
|
0.651
|
|
JAC880-22GB-4-8030
|
30
|
46.5
|
45
|
22
|
30
|
0.807
|
|
JAC880-30G-4-8040
|
40
|
62
|
60
|
30
|
40
|
1.01
|
|
JAC880-37G-4-8040
|
57
|
76
|
75
|
37
|
50
|
1.20
|
|
JAC880-45G-4-8050
|
69
|
92
|
91
|
45
|
60
|
1.51
|
|
JAC880-55G-4-8050
|
85
|
113
|
112
|
55
|
75
|
1.80
|
|
JAC880-75G-4-8060
|
114
|
157
|
150
|
75
|
100
|
1.84
|
|
JAC880-90G-4-8060
|
134
|
180
|
176
|
90
|
125
|
2.08
|
|
JAC880-110G-4-8060
|
160
|
214
|
210
|
110
|
150
|
2.55
|
04 Industry Application
① metal processing, stone processing
Strong low-frequency torque, high speed stability accuracy
Quickly decelerates and stops when power is off
High overload capacity, good overvoltage suppression
High protection level, strong adaptability to physical environment
Servo function, can replace most servo applications
② cable, curl
Low frequency torque is strong, supporting empty disk, full disk low speed rotation
quick response
High speed accuracy
High protection level
③ lifting machinery
Fast response speed, large starting torque
Zero speed holding brake, zero speed opening brake, low torque ripple
Comprehensive protection function
Compact structure design
④ fluid machinery
Intelligent debugging
Compatible with synchronous motors
Good man-machine interface
Speed search function
More excellent energy saving effect, the unit consumes the least power at the same torque
