Faced with the severe situation of the epidemic, Jarol shares took the initiative to assume social responsibilities, quickly gathered internal and external forces, combined with the company's technical research and development team cooperation, integrated industry resources, and grandly launched Jiale shares ultrasonic welding system.
The ultrasonic welding system can perfectly solve the problems of low efficiency, high cost, and insufficient safety in manual welding, and escort the efficient and stable production of masks and medical protective clothing related companies!
01 Ultrasonic welding system-working principle

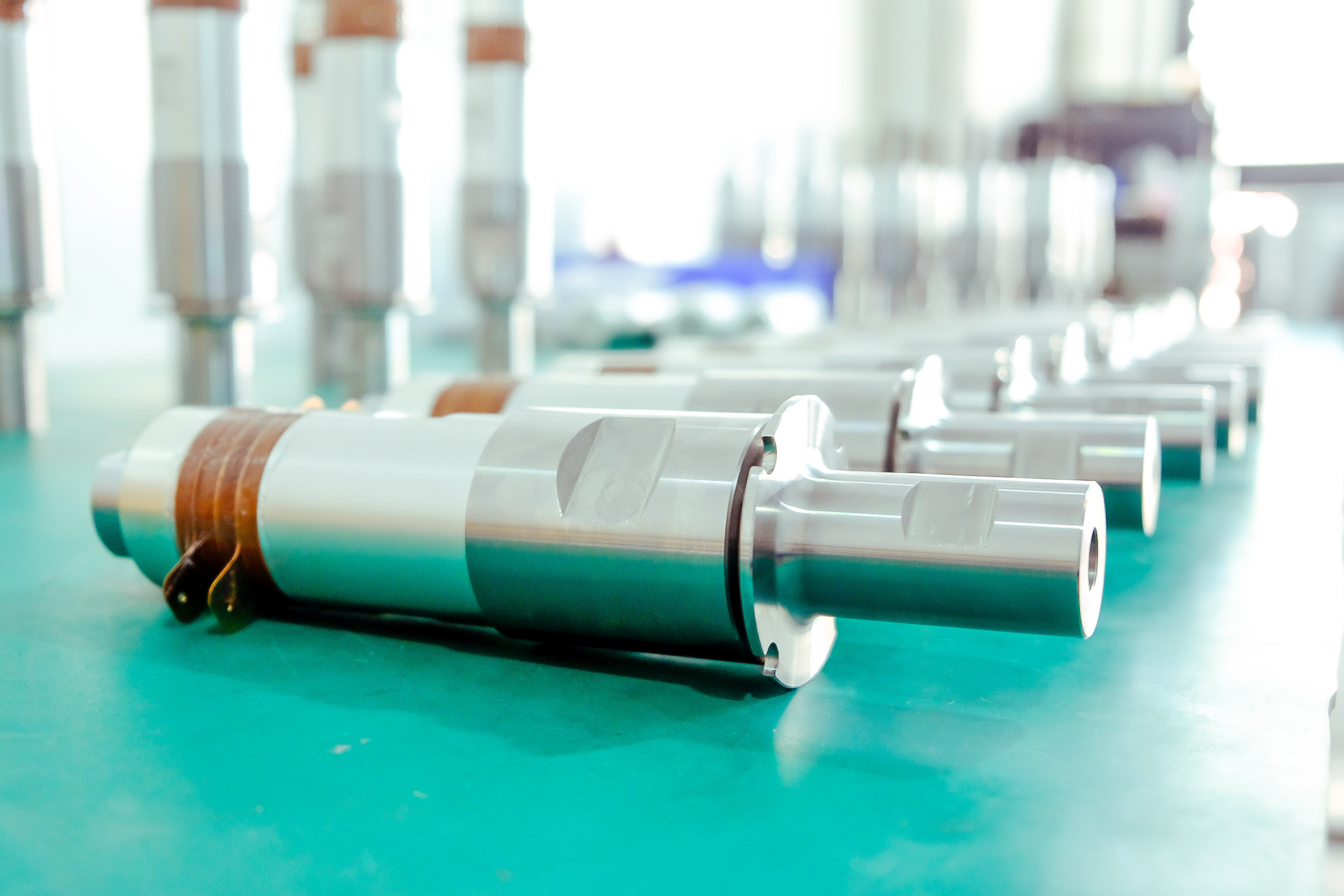

1. Ultrasonic generator converts low-frequency alternating current into high-frequency alternating current, and converts electrical energy into high-frequency vibration mechanical energy through a transducer;

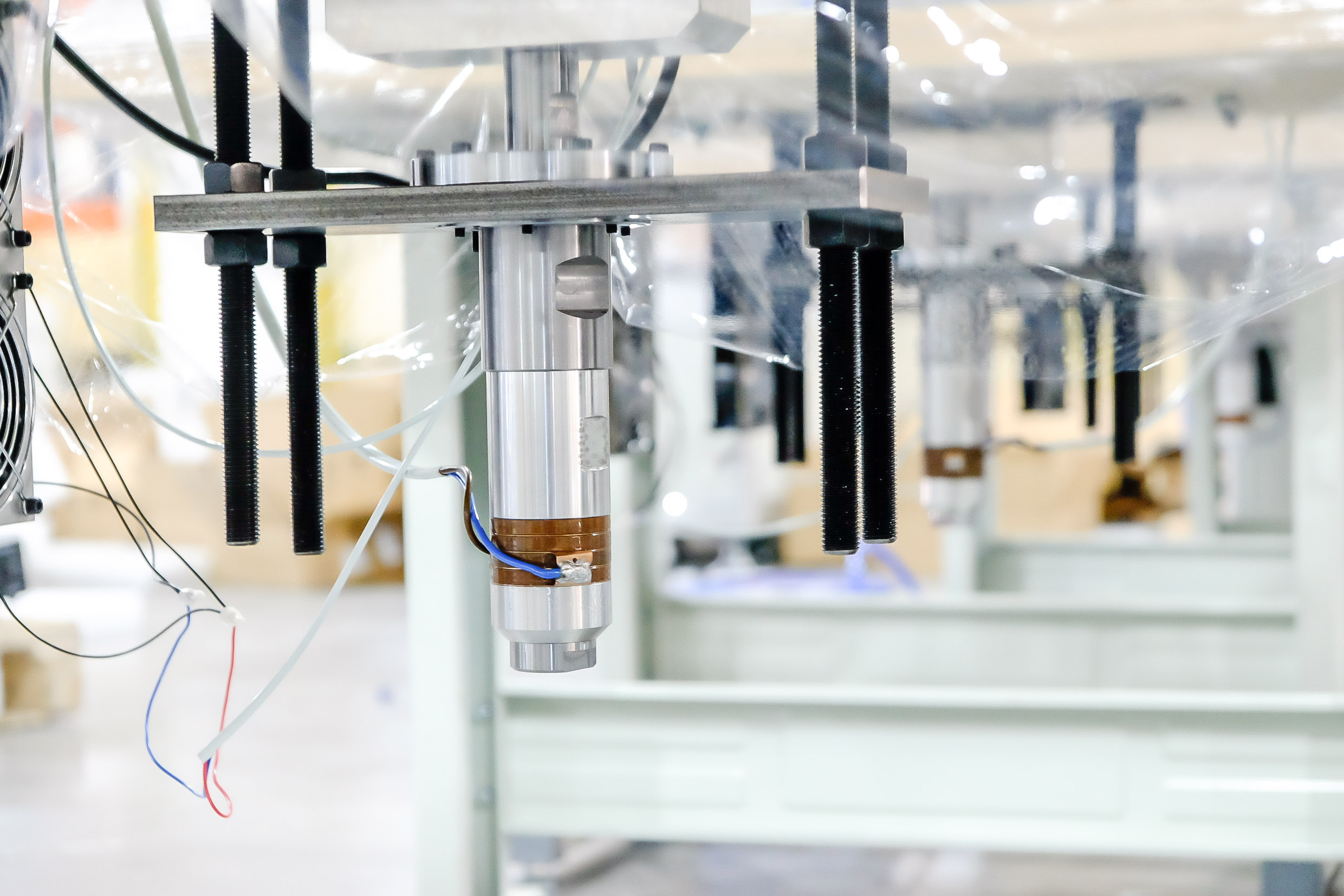

2. When the welding head acts on the contact surface of the thermoplastic, it generates tens of thousands of high-frequency vibrations per second;
3. The high-frequency vibration transmits the ultrasonic energy to the welding area through the upper weldment, and the upper and lower weldments in this area friction, resulting in local high temperature;
4. After the ultrasonic action, the pressure lasts for a few seconds to make it set and form a strong molecular chain to achieve welding.
02 Ultrasonic welding system-product model
15K ultrasonic welding system
Suitable： for larger plastic products that are difficult to weld
Rated power ：2000 ~ 2600W
Frequency ：15KHz
20K ultrasonic welding system
Suitable ：for precision, ultra-thin plastic parts, such as SD cards
Rated power： 900 ~ 2000W
Frequency： 20KHz
03 Ultrasonic welding system-technical parameters
Rated power: 900-2600W
Working frequency: 15KHz / 20KHz
Working power supply: AC220V 50Hz
Automatic frequency search time: <1S
Automatic frequency tracking time: 0.1 ~ 5S

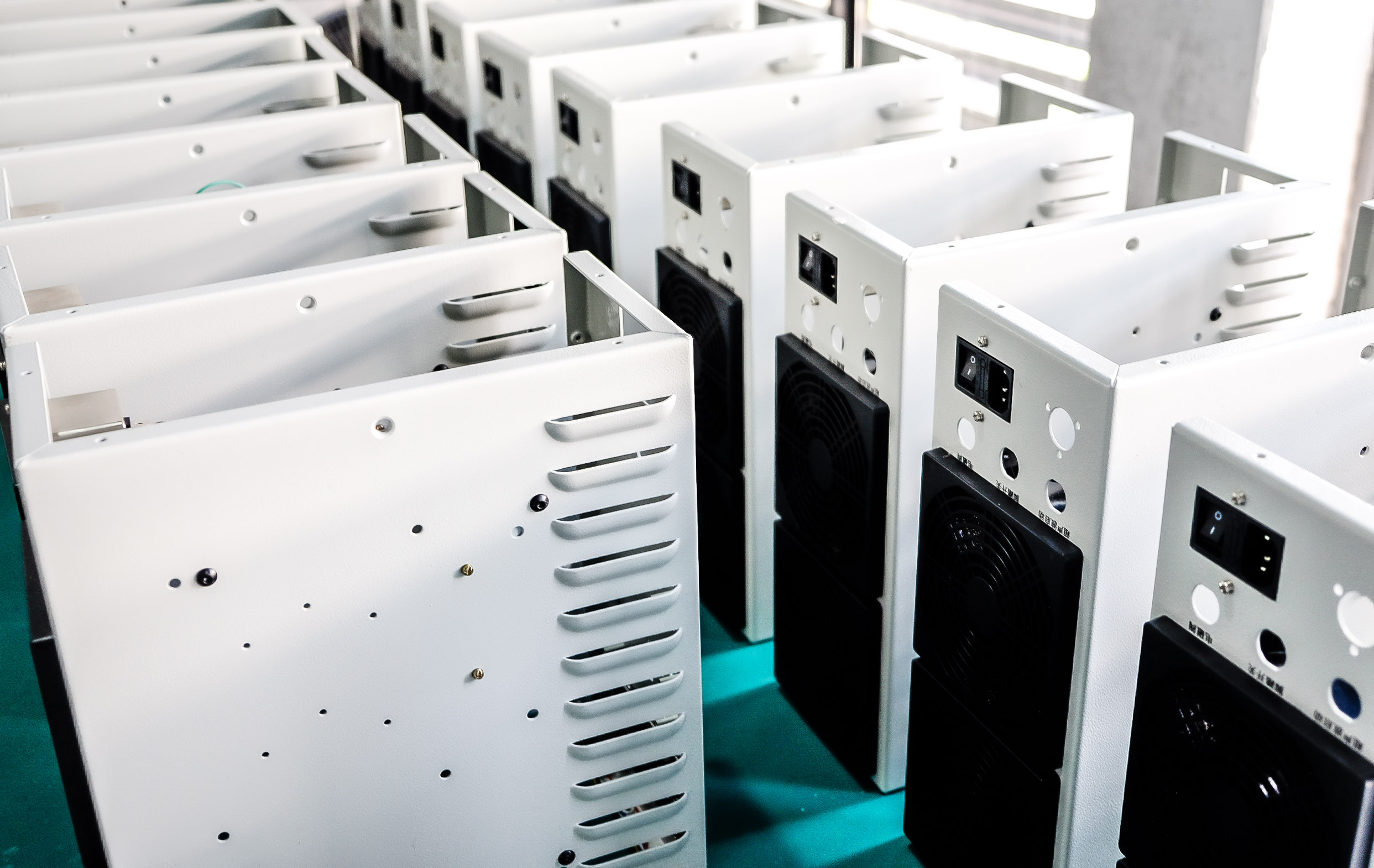

Power supply weight: 4KG
Power stability: ≤8%
Remote terminal dynamic response time: ≤15ms
Overcurrent protection current: 12A
Overcurrent protection time: 100ms
04 Ultrasonic welding system-product advantages
· Environmental protection: no solvents, adhesives or other auxiliary materials, environmental protection, no pollution, safe production;
· Intelligent: Automatic frequency search and automatic frequency tracking without manual adjustment. Ultrasonic amplitude is steplessly adjustable from 0% -100%, intelligently matching different product types. Can store more than 300 welding records;
· Efficient: replace manual welding, improve efficiency and reduce costs.
05 Ultrasonic welding system-application
The role of ultrasonic welding:
All plastic nose bridge welding
Welding after folding
Breathing valve welding
Multi-layer roll welding
Earband welding
Application scenarios of ultrasonic welding:
Mask
Medical protective clothing
Diapers
Sewing non-woven bags and non-woven clothes
Trademark slitting, nylon tape cutting
Jarol shares ultrasonic welding system
From today, the reservation is officially accepted
▼
Environmental protection, intelligence, high efficiency
Telephone: 0573-86452600
National Service Hotline: 400-680-9991
