The prevention and control of the new coronary pneumonia epidemic is in a critical period. The supply gap of medical protection materials around the world is huge. In particular, N95 masks are critical materials to win the anti-epidemic resistance war and ensure the safety of the first-line medical staff.

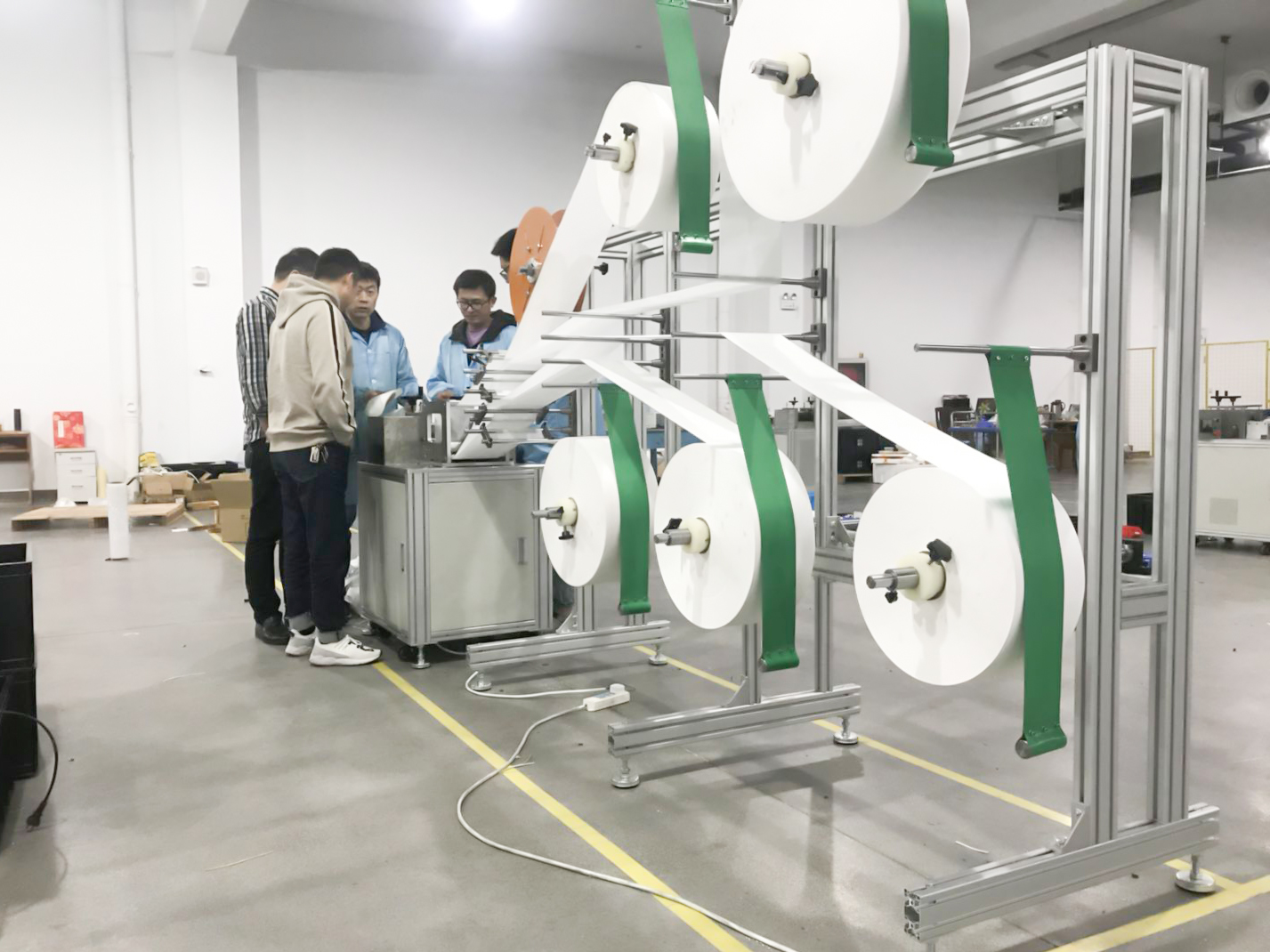

The LYL-KZ02-02 N95 built-in nose bridge tablet machine developed by the R & D team of Zhejiang Lianyilian Technology Co., Ltd. was successfully commissioned. It can produce 50 masks per minute, and it is expected to produce 72,000 masks 24 hours a day! ! !

Equipment introduction

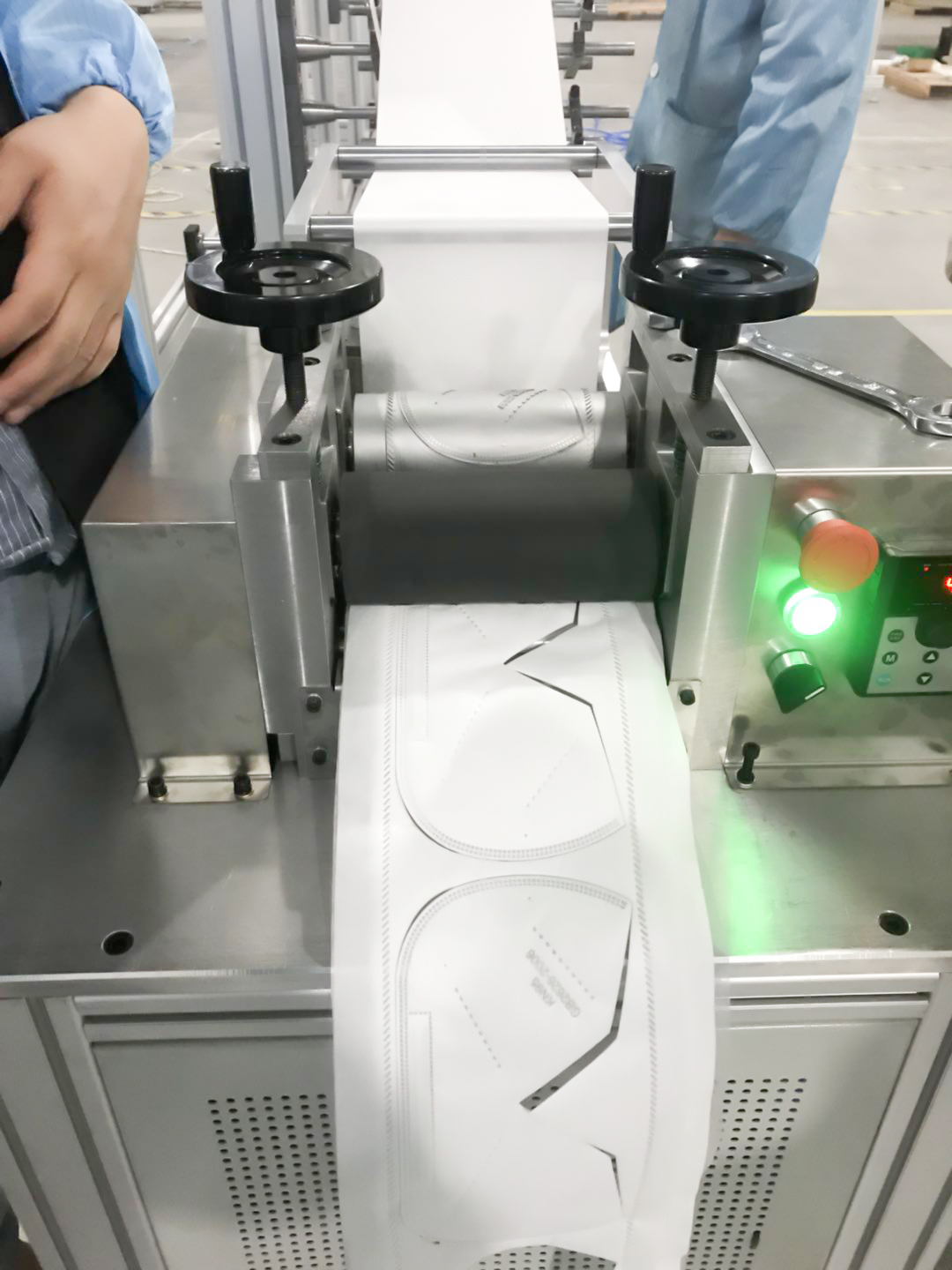

The device is a N95 built-in nose bridge tablet machine. It uses ultrasonic waves to weld and emboss 3-5 layers of non-woven fabrics and other mask materials. It also automatically penetrates into the nose bridge and welds the nose bridge into the mask, eliminating the need for later The process of welding the bridge of the nose bridge greatly reduces the labor and improves the production efficiency; it can produce various types of folding masks according to the requirements of customers.

Features

1. This machine automatically completes 3-5 laminating edges, cutting edges, and built-in nose bridge line.

2. The design concept is advanced and the technology is mature, which can meet the main needs of the production of folding masks.

3. The equipment runs stably and the failure rate is low.

4. The finished product, the bridge of the nose bridge fits firmly, the appearance of the mask is smooth and even, and the stitching is firm.

Device parameters

Mechanical model ：LYL-KZ02-02

Machine size ：3540mm * 1000mm * 2200mm (length * width * height)

Production speed ：50 pcs / min (built-in nose bridge)

Voltage ：220V

Net weight： 1500kg

Power consumption： 4kw

The LYL-KZ02-02 N95 built-in nose bridge tablet machine developed by Lianyilian has been successfully debugged to meet the production needs of various masks, and is now officially in mass production.
