With the spread of the epidemic, the number of people infected with the new crown virus worldwide has reached 200,000! At present, the epidemic situation in China has been basically controlled, and a large number of enterprises have begun to resume production in an orderly manner. However, the situation in Europe, where the epidemic broke out late, is severe, and the number of infected people has gradually increased. Various medical protective supplies are also very scarce, and various countries have sent messages to China for help.

In this context, in order to contribute a little bit of its own power to the epidemic prevention operation, Jiale Co., Ltd. will launch an independent research and development in addition to the fully automatic one-to-two plane mask machine and the full-automatic mask body machine (filming machine) Semi-automatic welding ear strap machine. It can realize the rapid welding of disposable masks and greatly improve the production efficiency of masks.

Equipment introduction

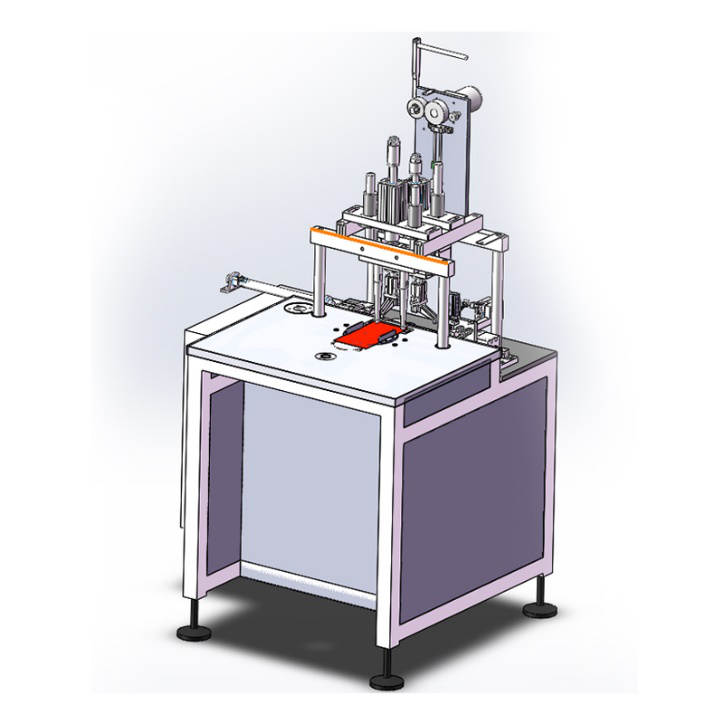

The semi-automatic ear welding machine developed by Jiale Co., Ltd. is a device for welding ear bands of disposable masks using ultrasonic welding.

How to use the equipment

1. Manually put masks without solder ear straps into the tooling

2. Press the start button

3. Single side of welding mask

4. welding the other side of the mask after rotation

Equipment technical parameter table

Equipment Type Semi-Automatic Ear Welder: Applicable occasions mask welding

Welding method: Ultrasonic welding

Positioning accuracy : within 10 wires

Control system:  PLC solenoid valve, etc.

Feeding system : Dedicated feeding guide, vibrating plate equipment-sets, automatic replenishment storage hopper equipment (optional)

Voltage：220V, 50Hz

Rated power : 0.5kW

Equipment weight:  90kg

Equipment size:  600mm (length) x 600mm (width) x 640mm (height)

The semi-automatic ear welding machine developed by Jiale Co., Ltd. uses ultrasonic welding to fuse the elastic band to the outside of the mask body. Only one operator needs to place the mask body piece by piece in the mask plate. The equipment operates automatically.

Our company will soon launch a semi-automatic ear welding belt machine, which can be used for welding of adult and children's masks.
