The epidemic situation of new-type coronavirus pneumonia in China is gradually improving, but the epidemic situation has spread globally, which makes us even more cautious. According to the situation at home and abroad, for a long time to come, masks will still be the most indispensable protective materials and a necessity for life.
After many days and nights of hard work and many debuggings, the Lianyilian R & D team officially launched the full-automatic mask body machine (filming machine).
Equipment Introduction

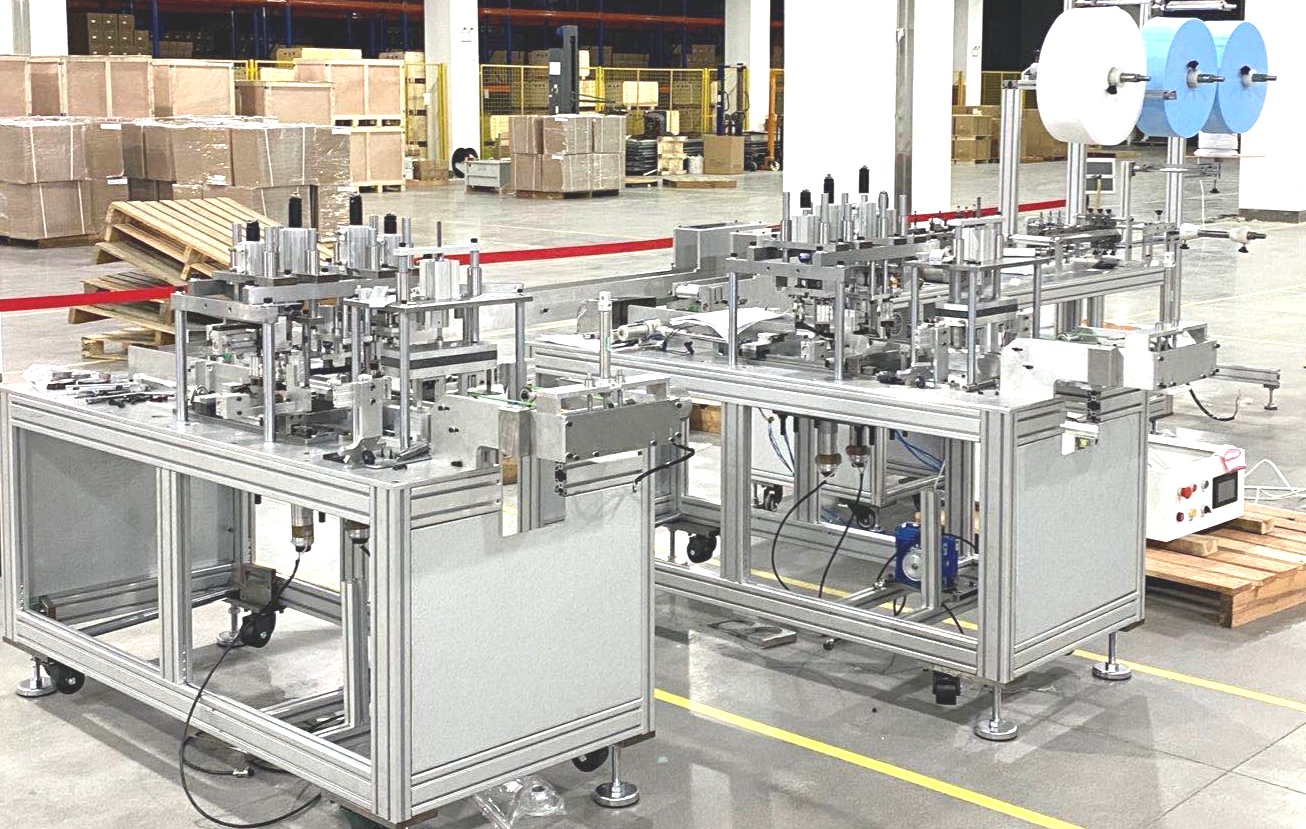

The automatic mask body machine is mainly used for the automatic forming of flat plane masks. After the entire roll of fabric is unrolled, it is driven by rollers. The fabric is automatically unfolded by automatic hemming, hemming, and the nose bridge. In both sides, the two sides are welded to the seal by ultrasonic welding, and the side seal is cut by a cutter after ultrasonic sealing, and the whole process is automatically controlled.
Only one person is required to operate this machine. The scientific and reasonable mechanical transmission configuration makes this machine extremely efficient. The special welding wheel and cutter wheel design have good abrasion resistance and greatly increase the service life of the product.
Equipment characteristics
1.The machine adopts aluminum alloy structure, small size, stable operation and low scrap rate;
2. with photoelectric detection, automatic counting, can control the production speed, high output;
3. It can produce 120 pieces per minute, and it can produce (3-4 layers) multilayer masks.
Equipment installation and configuration requirements
Machine name: Automatic mask body machine (filming machine)
Equipment size: 3600mm (L) x 1100mm (W) x 2100mm (H)
Equipment weight: 500 KG
Working voltage: AC220V, 50 / 60HZ
Rated power: 4KW
Compressed air: 0.5-0.7Mpa
Use environment: temperature 10-35 ℃, humidity 5-35% HR, no flammable, corrosive gas, no dust (medical grade)
The fully automatic mask body machine (filming machine) produced by Lianyilian has been successfully developed and entered the mass production stage! You are welcome to consult and place an order, we are always waiting for your presence!
